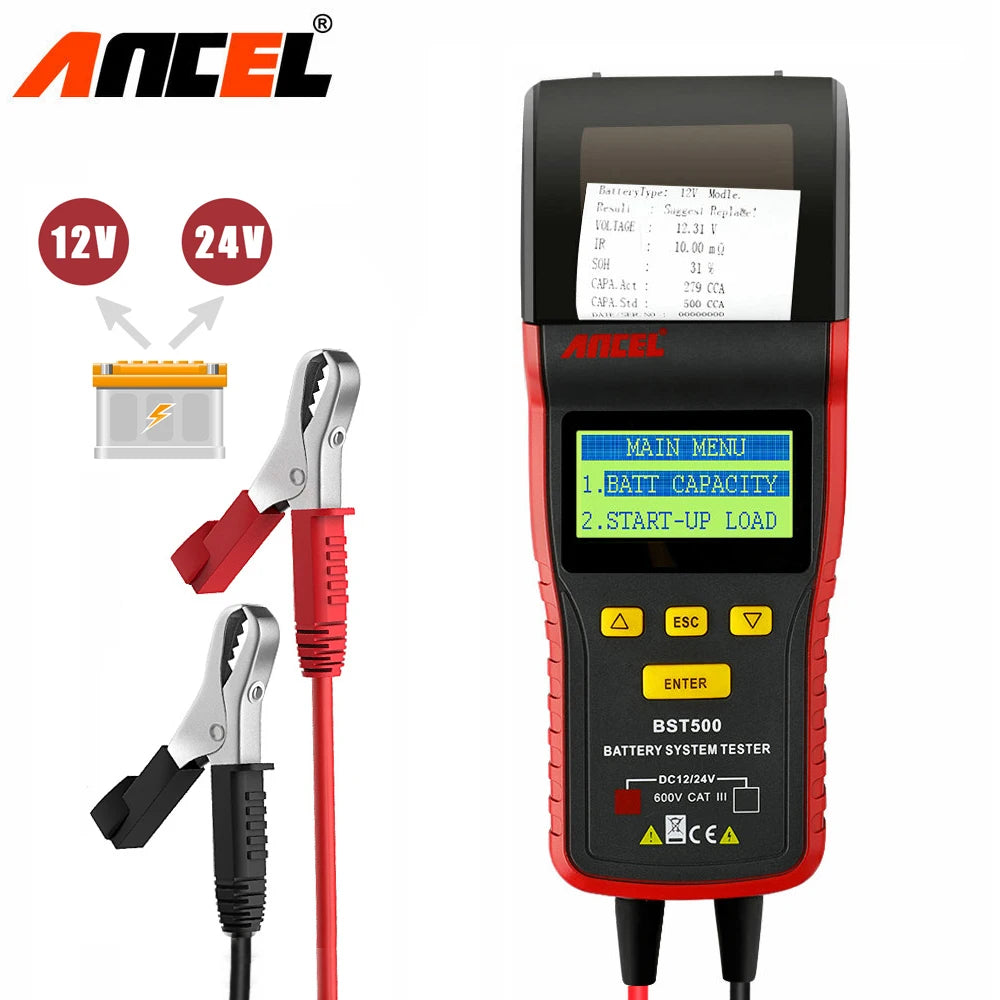

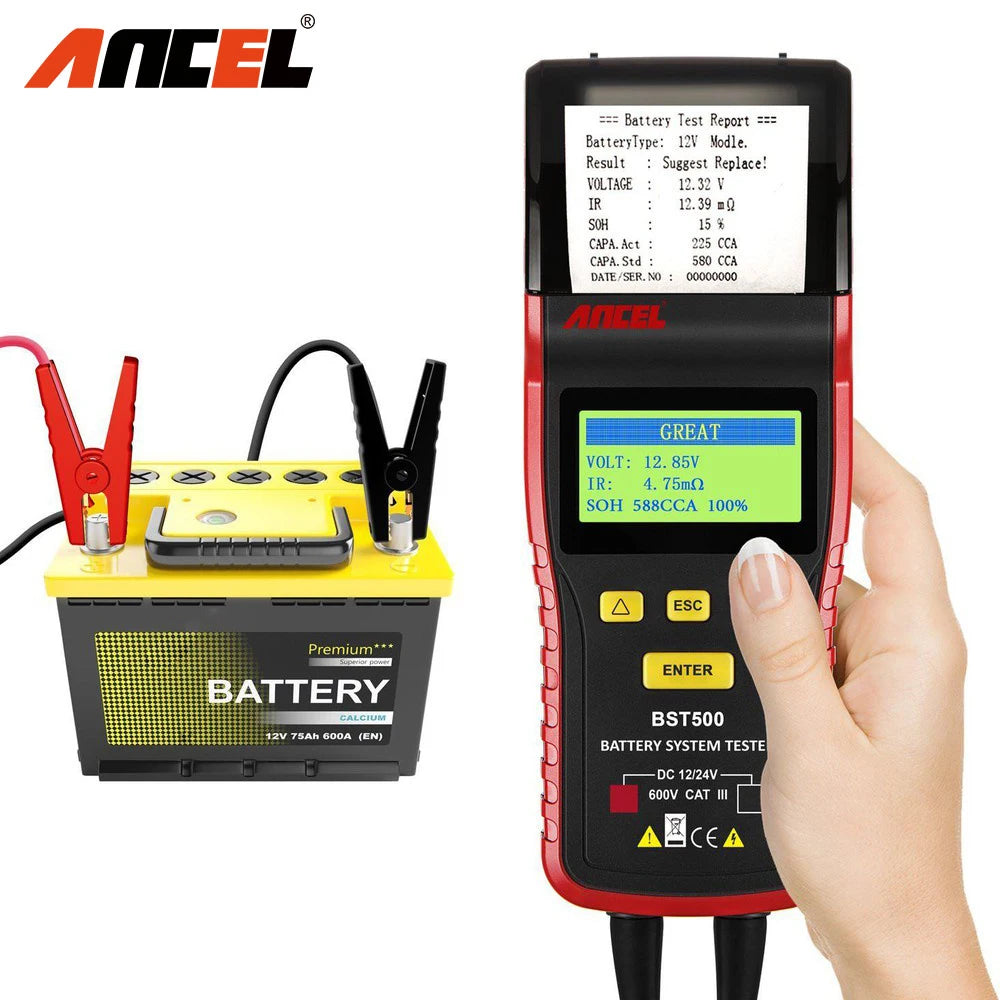

ANCEL BST500 Car Battery Tester Car 12V/24V Automotive Battery Load Tester Cranking Charging Analyzer with Printer Diagnostic
ANCEL BST500 Car Battery Tester Car 12V/24V Automotive Battery Load Tester Cranking Charging Analyzer with Printer Diagnostic
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANCEL
🔋 Wide Battery Compatibility – Works with 12V and 24V lead-acid batteries including regular flooded, AGM flat plate, AGM spiral, and GEL batteries.
⚡ Accurate Cranking & Charging Tests – Quickly detects battery health, starting system issues, and alternator charging problems with precision.
📊 Advanced Conductance Testing – Delivers fast, reliable results without draining the battery.
🖥️ Large Backlit LCD Display – Easy-to-read screen with intuitive interface for use in any lighting condition.
🔌 Plug & Play Operation – No batteries required; draws power directly from the vehicle battery.
🧳 Compact & Portable – Rugged design with anti-slip grip, perfect for mechanics, DIYers, or on-the-go use.
🌎 Multilingual Support – Supports multiple languages for global ease of use.
ANCEL BST500 Full Automatic Car Battery Charger 12V 24V Digital Display Battery Power Puls Repair Chargers Wet Dry Lead
|

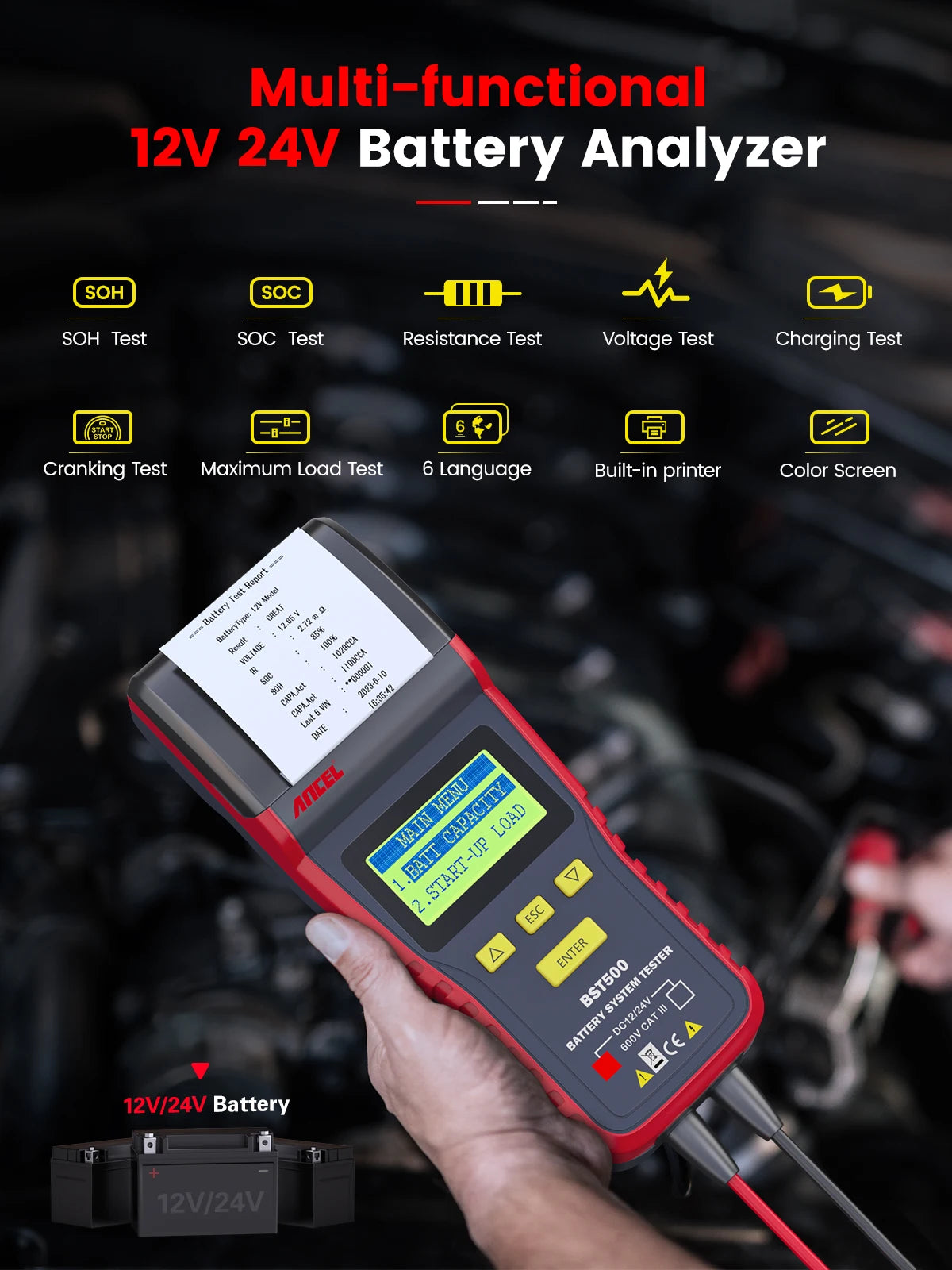

ANCEL BST500 12V&24V Car Battery Charging Tester Analyzer With Printer Heavy Duty Truck Car Battery Test Auto Diagnostic toolAncel BST500 Battery Tester can easily, quickly and accurately measure12v car and 24v heavy truck the actual cold cranking current capability to judge the health condition of the battery itself. BST500 battery tester can detect common faults of both starting and generator charging systems, which helps you achieve quick repair to the vehicle problems.
Ancel BST500 Battery Tester Main Parameters:
1 Shell ABS anti - acid plastic,two-tone green rubber oil ;
2.128 * 64 dot matrix,large backlit display screen (3 inches ),adjustable backlight brightness LCD display ;
3 test standards,including the most commonly used battery standard in the world,such as CCA, BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB
4 Operating temperature:-20-60 (-4-140 )
BST500 Battery Tester Product Advantage:
Simple, secure , fast , and accurate display test results ( the test takes about 3 seconds)
Eight lines with backlight LCD display and humane language prompted interface

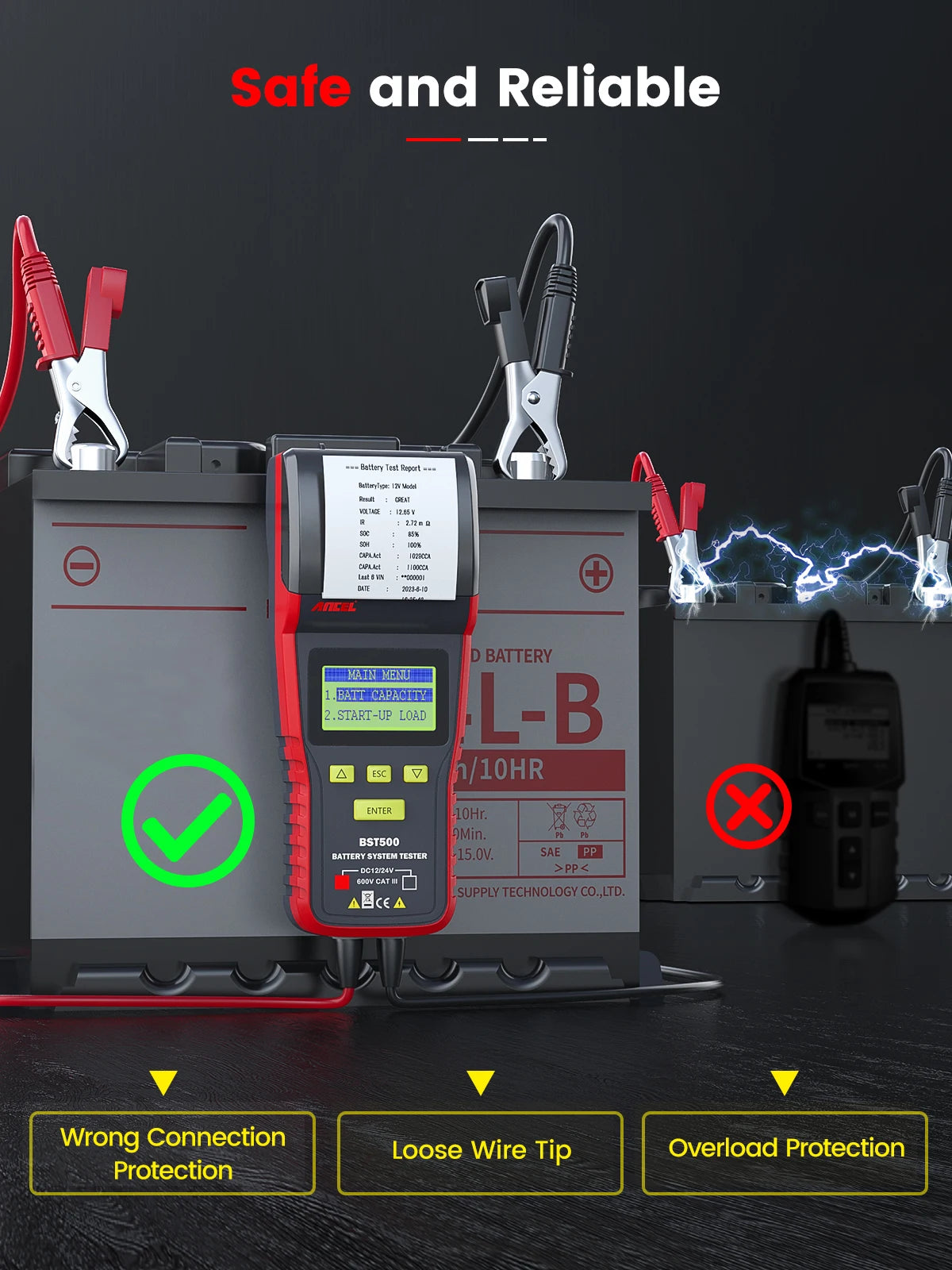

Does not emit light , no heat , no discharge , no spark , no operating dangerous
Automatic temperature compensation function With ripple voltage test function
Removable replacement test line
Dedicated Kelvin test clip
Language: English, France, German, Spanish, Italian, Polish
BST500 Battery Tester Advanced Functionality:
Applicable to a variety of models, all kinds of batteries , and a variety of system mode
Directly detected in the car , do not need to remove the battery
Directly test the battery of the loss of electricity , bad cell battery
BST500 Battery Tester Test Criteria and Scope:
CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating )
BCI 100-2000 ( international battery Committee standards )
CA 100-2000 (0 C when the effective starting current rating)
MCA 100-2000 ( ships standard effective starting current rating , 0 C )
JIS 26A17 - 245H52 ( Japanese Industrial Standard)
Standard DIN 100-1400 ( German Automobile Industry Committee )
The IEC 100-1400 ( International Electrotechnical Commission standard )
EN 100-2000 ( European Automobile Manufacturers Association standards )
SAE 100-2000 ( U.S. Engineers Standard)
GB 100-1400 ( Chinese National Standard )
